鍛鋼グローブ弁

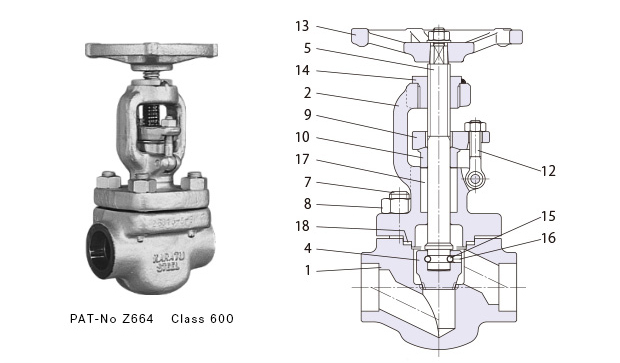

構造 PROFILE and FEATURE

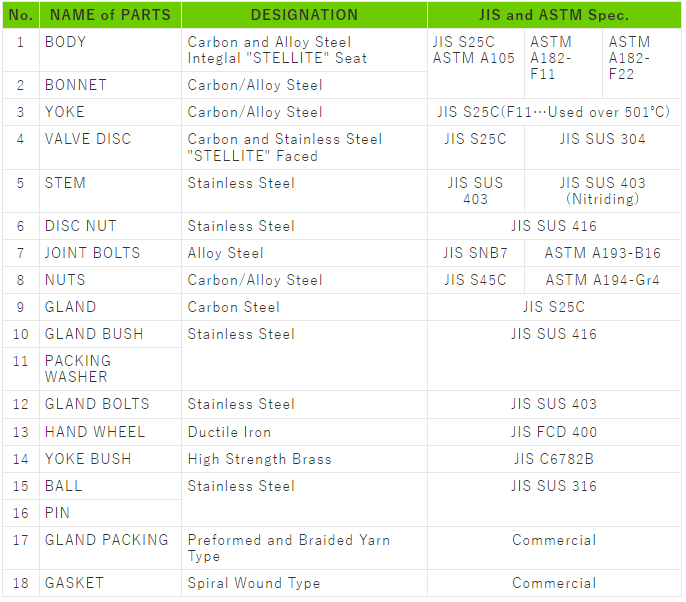

材料 MATERIALS
| No. | NAME of PARTS | DESIGNATION | JIS and ASTM Spec. | ||
|---|---|---|---|---|---|
| 1 | BODY | Carbon and Alloy Steel Integlal "STELLITE" Seat |
JIS S25C ASTM A105 |
ASTM A182-F11 |
ASTM A182-F22 |
| 2 | BONNET | Carbon/Alloy Steel | |||
| 3 | YOKE | Carbon/Alloy Steel | JIS S25C(F11…Used over 501℃) | ||
| 4 | VALVE DISC | Carbon and Stainless Steel "STELLITE" Faced |
JIS S25C | JIS SUS 304 | |
| 5 | STEM | Stainless Steel | JIS SUS 403 | JIS SUS 403 (Nitriding) |
|
| 6 | DISC NUT | Stainless Steel | JIS SUS 416 | ||
| 7 | JOINT BOLTS | Alloy Steel | JIS SNB7 | ASTM A193-B16 | |
| 8 | NUTS | Carbon/Alloy Steel | JIS S45C | ASTM A194-Gr4 | |
| 9 | GLAND | Carbon Steel | JIS S25C | ||
| 10 | GLAND BUSH | Stainless Steel | JIS SUS 416 | ||
| 11 | PACKING WASHER | ||||
| 12 | GLAND BOLTS | Stainless Steel | JIS SUS 403 | ||
| 13 | HAND WHEEL | Ductile Iron | JIS FCD 400 | ||
| 14 | YOKE BUSH | High Strength Brass | JIS C6782B | ||
| 15 | BALL | Stainless Steel | JIS SUS 316 | ||
| 16 | PIN | ||||
| 17 | GLAND PACKING | Preformed and Braided Yarn Type | Commercial | ||
| 18 | GASKET | Spiral Wound Type | Commercial | ||

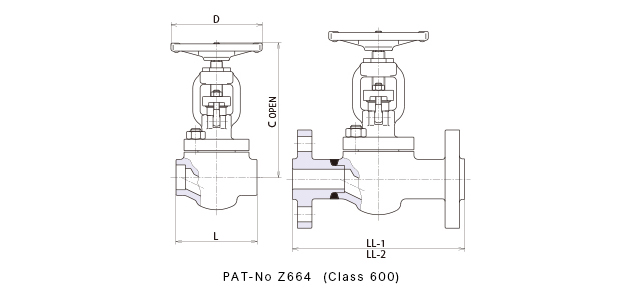

寸法・質量 DIMENSIONS and MASS
SOCKET WELD ENDS
| Style(Class) | Nom.Size mm(in) | L | C | D | Mass kg |
|---|---|---|---|---|---|
| Z664（600） | 15（1/2） | 84 | 155 | 90 | 2.4 |
| 20（3/4） | 91 | 175 | 100 | 3.4 | |
| 25（1） | 111 | 200 | 125 | 5.2 | |
| 32（1 1/4） | 165 | 250 | 140 | 9.5 | |
| 40（1 1/2） | 165 | 250 | 140 | 9.5 | |
| 50（2） | 203 | 290 | 160 | 15 |
FLANGED ENDS
| LL-1 | LL-2 | Note | |
|---|---|---|---|
| 152 | 165 | LL-1 JIS 10K 16K 20K 30K ANSI 150 300 |
LL-2 JIS 40K ANSI 600 |
| 178 | 190 | ||
| 203 | 216 | ||
| 229 | 241 | ||
| 229 | 241 | ||
| 267 | 292 | ||
Dimensions in mm
