鍛鋼リフトチェック弁

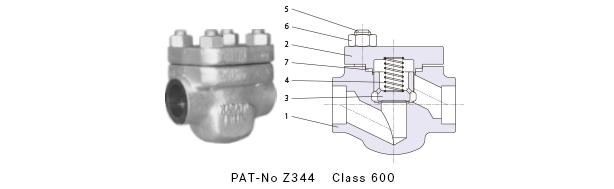

構造 PROFILE and FEATURE
材料 MATERIALS

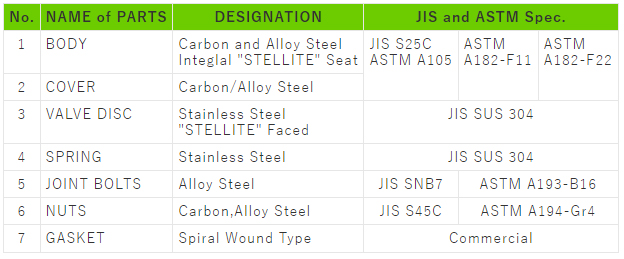

| No. | NAME of PARTS | DESIGNATION | JIS and ASTM Spec. | ||
|---|---|---|---|---|---|
| 1 | BODY | Carbon and Alloy Steel Integlal "STELLITE" Seat |
JIS S25C ASTM A105 |
ASTM A182-F11 |
ASTM A182-F22 |
| 2 | COVER | Carbon/Alloy Steel | |||
| 3 | VALVE DISC | Stainless Steel "STELLITE" Faced |
JIS SUS 304 | ||
| 4 | SPRING | Stainless Steel | JIS SUS 304 | ||
| 5 | JOINT BOLTS | Alloy Steel | JIS SNB7 | ASTM A193-B16 | |
| 6 | NUTS | Carbon,Alloy Steel | JIS S45C | ASTM A194-Gr4 | |
| 7 | GASKET | Spiral Wound Type | Commercial | ||
1.輸送中の弁体の振動防止
2.締切性の向上
3.弁体作動時のセンター保持効果
注.
スプリング荷重は圧力損失にほとんど無関係な軽荷重ですので原則として垂直配管には使用できません。
1. Prevention of valve disc vibration during transport
2. Improvement of shutting-off performance
3. Effect of holding center at the time of disc working
NOTE:
Spring load is a light load which affects scarcely the pressure loss, thus, it cannot be used in vertical piping as a rule.

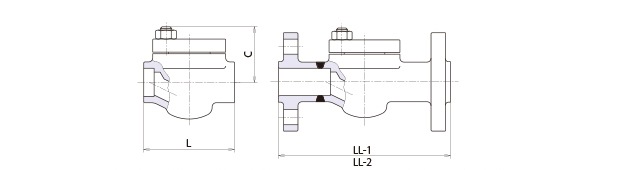

寸法・質量 DIMENSIONS and MASS
SOCKET WELD ENDS
| Style(Class) | Nom.Size mm(in) | L | C | Mass kg |
|---|---|---|---|---|
| Z344（600） | 15（1/2） | 84 | 50 | 1.5 |
| 20（3/4） | 91 | 60 | 2.1 | |
| 25（1） | 111 | 70 | 3.5 | |
| 32（1 1/4） | 165 | 90 | 6.8 | |
| 40（1 1/2） | 165 | 90 | 6.8 | |
| 50（2） | 203 | 110 | 11.3 |
FLANGED ENDS
| LL-1 | LL-2 | Note | |
|---|---|---|---|
| 152 | 165 | LL-1 JIS 10K 16K 20K 30K ANSI 150 300 |
LL-2 JIS 40K ANSI 600 |
| 178 | 190 | ||
| 203 | 216 | ||
| 229 | 241 | ||
| 229 | 241 | ||
| 267 | 292 | ||
Dimensions in mm
